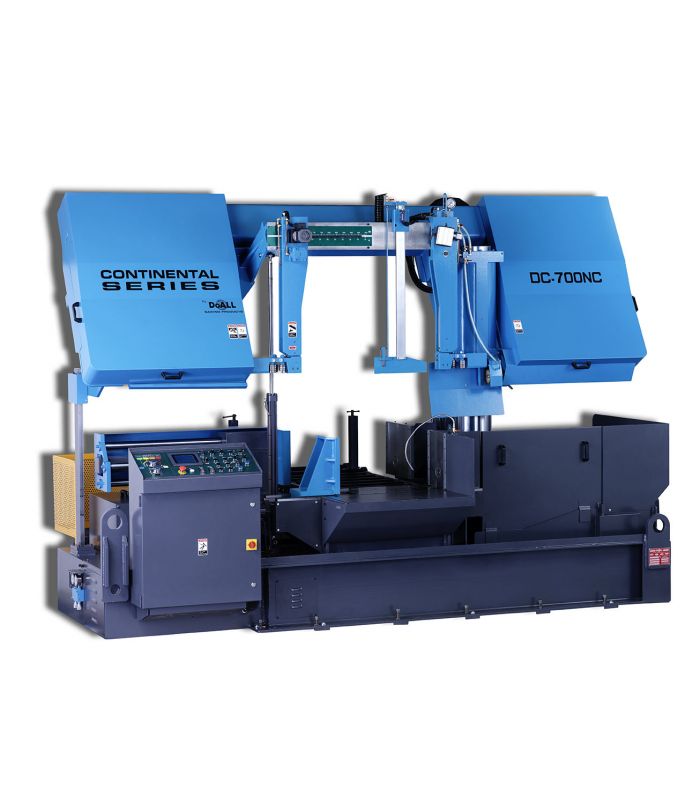

DC-700NC Production Band Saw
Machine Capacity: w 31″ x h 27” (800mm x 700mm)
Machine Capacity Round: 27" (700mm)
Production Level: High
Standard Features: Programmable Logic Controller (PLC) for All Machine Functions, Hydraulic Indexing and Vices with Variable Vise Pressure Control
The DC-700NC Continental Series™ band saw from DoALL is the industry benchmark in automated production for automotive and heavy duty machinery parts.
Streamline production and improve operational efficiencies with a variety of standard equipment, as well as optional extras to custom tailor your next band saw machine to exactly what you require. Nothing more, nothing less.
The DoALL DC-700NC includes the following accessories as standard:
- Programmable Logic Controller for all machine functions
- Feed rate/feed force saw head control
- Infinite band speed controlled variable frequency drive
- Hydraulic retractable shuttle vice material indexer on chrome rails
- Rapid and creep speed index vice control
- Full stroke vices with outboard front vise
- Variable vice pressure control
- Vertical hydraulic cylinders with hold down fixtures
- Hydraulic set, zero clearance, coolant through, carbide faced saw guide inserts with lead in rollers
- Adjustable power driven band cleaning brushes with coolant flush line attached
- Halogen work light
- Electric motor driven movable saw guide arm
- Blade shock proof device
- Flushing hose for machine wash down and auxiliary coolant nozzles
- Hydraulic band tension
- Hydraulic adjustable speed auger design chip conveyor
- One shot column lubricator
- Saw band break/stall motion detector shut off switch
- Band door interlocks
- Operation and parts manuals on USB stick
- One 6.5 ft. (2M) idler input conveyor
- Maintenance tool kit
- Complimentary DoALL Cutting Fluids package
Machine Details & Specs:
Touch Screen Control
Easy operator input. 20 Job storage with batching capabilities. Control is multi-lingual for today's workforce. Will display an error message when an incorrect entry is made. Easy switching between imperial or metric units.
High-Efficiency Transmission
High-efficiency worm gear box built to decrease wear and transmit full torque to the saw blade. Double wide “V” belt to avoid slipping, transmitting full motor power to the transmission.
Hydraulic Chip Conveyor
Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.
Coolant Thru Carbide Faced Saw Guide Inserts
Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.
Efficiently Designed Hydraulic System
Engineered low-pressure system allows for a smoother and quieter operation which aids in longer component life and easy accessibility for maintenance
Band Wheels
30 Degree lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.
Underslung Indexer System
Reduces friction when indexing heavier or rough surface material by the use of rollers allowing for smoother material movements.
Movable Saw Guide Arm
Electrical driven movable guide arm with hydraulic lock system aids the operator in the placement of the arm close to the cut minimizes blade deflection
Hydraulic Blade Tension
Eliminates possible error of over/under tightening the band for maximum cutting rates and band life.
Back-up Bearing/Inserts
Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.
Retractable Shuttle Type Index Vise
Both jaws retract when the vise is opened to accommodate the movement of crooked stock increasing accuracy and repeatability.
Magnetic Scale for Indexer
The scale which creates indexing accuracy is protected from dirt and oil build up insuring its long life.
Nesting Fixtures
Plug-n-play vertical hold-down clamp assemblies allow the operator to perform multiple-piece cutting to increase productivity.
Warranty
One-year parts and service subject to the terms and conditions. An optional ten-year warranty is available. DoALL Cut Above 10 Year Warranty
Machine Specs:
- Saw Blade:
- Width x Length – 2.625" x 325"
- Width x Length – 2.625" x 325"
- Band Drive:
- Motor HP - 15 HP
- Band Speed - 52-275 fpm
- Band Tension - Hydraulic
- Hydraulic System:
- Motor HP - 3 Hp
- Reservoir Size 34 Gallon
- Coolant System:
- Flood
- Motor HP - 1/4 HP
- Reservoir Size - 61 Gallon
- Indexer:
- Length per Stroke - 15.75"
- Maximum Index Strokes Length - 141"
- Remnant Length - 9" (non-bundle)
- Floor Space Dimensions:
- W x L X H - 154" x 89" x 90"
- Material Pass Height - 31.5"
- Machine Weight - 15,650 lbs.
- Electrical:
- Voltage Requirement - 230V-60Hz-3ph, Wye configuration
- Total Amp Draw (FLA) - 61 Amps
Optional Accessories:
- 10 ft. idler conveyor
- 5 ft. idler conveyor with filler plates
- Out of square detection
- Additional USB stick of manuals
- Laser line
- A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
- DoALL Cut Above 10 Year Warranty
