Hercules™

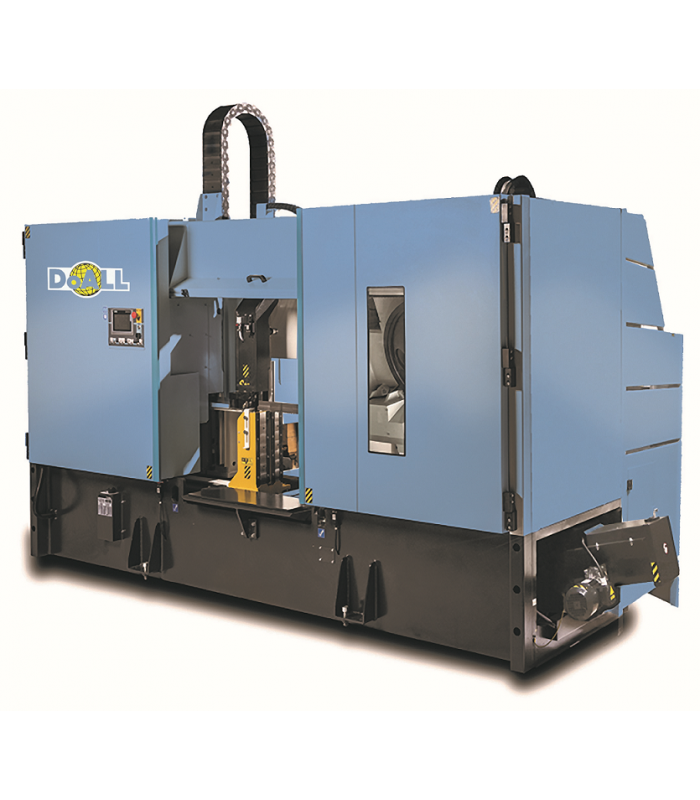

DC-750CNC - Dual Column Enclosed CNC Band Saw
Machine Capacity: w 28” x h 30″ (700 x 750mm)
Machine Capacity Round: Tube or Solid - 28″ (700mm)
Production Level: Extreme
Standard Features: Variable Vise Pressure, Fully-Automatic Siemens Digital Controls and Automatic Material Retraction
The DC-750CNC Hercules™ offers fully-automatic operations which improve the performance of your production. All machine operations are hydraulically controlled, including indexing and feed. Once the Siemen’s digital control is programmed to the required specifications, the operator only needs to monitor the progress of parts cutting.
The DC-750CNC is equipped with a 15 HP ball screw driven band drive and independent drive motors for the coolant pump and the hydraulic systems – sacrificing none of the cutting power to drive accessories.
The DoALL Hercules™ line is fully enclosed to improve the safety in your facility.
SKU
DC-750CNC
Standard equipment included with your purchase of a new DoALL DC-750CNC:
- Siemens control with touch screen display
- Automatic feed control with programmable feed rates
- Work light
- Chain chip conveyor including chip pan with drain
- Retractable stationary machine vice jaw
- Dual acting index vise jaws for crooked stock
- Hydraulic band tension
- Automatic retraction of material in cycle for protection of carbide blade
- Variable vise pressure control - Set of 2
- Programmable work height
- Automatic guide arm setting
- Power-driven band brush
- Tool kit
- Flood coolant
- Operation and parts manuals on CD or USB data stick
- Complimentary DoALL cutting fluids package
- One (1) complimentary DoALL bi-metal saw blade
- Automatic retraction of material in cycle for protection of carbide blade
- Hydraulic blade clamping in saw guides
Machine Details & Specs:
- Cutting capacity for tube - Round: 28" (700mm) , Rectangle: 28” x 30" (700mm x 750mm)
- Cutting capacity for solid - Round: 27.5" (700mm)
- Maximum nesting capacity – 29.5" x 17.75" (750mm x 450mm)
- Minimum nesting capacity - 4.5" (115mm)
- Band saw blade dimensions - Width: 2.625” x 0.063" (67mm x 1.6mm), Length: 303" (7680mm)
- Band speed - 50-262 fpm (15-80mpm)
- Band drive motor - 15 HP (11.1kw) - 25 degree sloped
- Auto index single stroke min-max - 0.12-27.5" (3-700mm)
- Auto index multiple stroke max - 394" (9999mm)
- Minimum butt end - 8.5" (215mm)
- Multiple feed - 393.7" (9999mm)
- Hydraulic pump - 5.4HP (4kw)
- Coolant pump and capacity - 0.2 HP (0.155kw), 52.8 gal (200 lit)
- Material pass line height - 24.4" (620mm)
- Machine weight – 27,558 lbs (12500kg)
- Dimensions W x L X H – 229” x 109” x 95" (5800mm x 2750mm x 2400mm)
- Machine Voltage - 460vac, 3-Phase, 60hz, Wye configuration required
Optional Accessories:
- Mist-style saw band lubrication
- Laser line generator
- Laser safety curtain
- Dynamic adjustment of feed rate to ensure cut square-ness
- Hydraulic front and rear vise nesting - Set of 2
- Laser edge finder - eliminates need for crop cut
- Programmable work height
- 3 ft. (1000mm) Input or output conveyor with drip pan/gutter - 31.5" (800mm) cylinder width - 1344 lbs/ft (2000kg/m) capacity
- 3 ft. (1000mm) Conveyor filler plates
- 6 ft. (2000mm) Heavy-duty conveyor with RBR - 31.5" (800mm) cylinder width - 4704 lbs/ft (7000kg/m) capacity
- 6 ft. (2000mm) Input or output conveyor with drip pan/gutter - 31.5" (800mm) cylinder width - 1344 lbs/ft (2000kg/m) capacity
- Single fixed vertical guide roller - 25.6" (650mm) cylinder height
- Single adjustable vertical guide roller - Adjusts up to 25.6" (650mm) cylinder height
- Additional conveyor rollers
- Hydraulic shift of vertical guide roller
- 6 ft. (2000mm) Conveyor filler plates
- Large chip pan with drain
- Wear parts service kit - contains wear plates, guides, band brushes
- Additional copy of manuals on CD or USB data stick
- Magnetic wand chip remover
- Start-up kit - includes 6 genuine DoALL blades, Vernier caliper, refractometer, heavy-duty work gloves, work apron, safety glasses, squeegee, magnetic wand chip remover and ball cap
- DoALL Cut Above 10 Year Warranty
