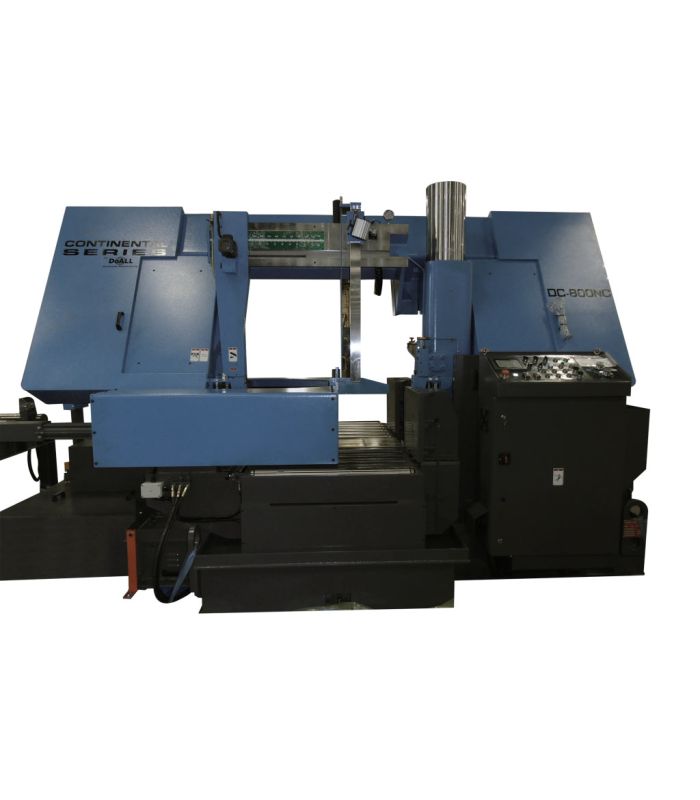

DC-800NC Production Band Saw

Machine Details & Specs:

Touch Screen Control
Easy operator input. 20 Job storage with batching capabilities. Control is multi-lingual for today's workforce. Will display error message when incorrect entry is made. Easy switching between imperial or metric units.

High-Efficiency Transmission
High-efficiency worm gear box built to decrease wear and transmit full torque to the saw blade. Double wide “V” belt to avoid slipping, transmitting full motor power to the transmission.

Hydraulic Chip Conveyor
Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.

Coolant Thru Carbide Faced Saw Guide Inserts
Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.

Efficiently Designed Hydraulic System
Engineered low-pressure system allows for a smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.

Band Wheels
30 Degree lay-back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.

Underslung Indexer System
Reduces friction when indexing heavier or rough surface material by the use of rollers allowing for smoother material movements.

Movable Saw Guide Arm
An electrical driven movable guide arm with a hydraulic lock system aids the operator in the placement of the arm close to the cut minimizes blade deflection.

Hydraulic Blade Tension
Eliminates possible error of over/under-tightening the band for maximum cutting rates and band life.

Back-up Bearing/Inserts
Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.

Retractable Shuttle Type Index Vise
Both jaws retract when vise is opened to accommodate the movement of crooked stock increasing accuracy and repeatability.

Magnetic Scale for Indexer
The scale which creates indexing accuracy is protected from dirt and oil build up insuring its long life.

Nesting Fixtures
Plug-n-play vertical hold-down clamp assemblies allow the operator to perform multiple-piece cutting to increase productivity.

Warranty
One-year parts and service subject to the terms and conditions. 10-year manufacturer’s warranty available (Cut Above Lifetime Warranty).

Machine Specs:

• Saw Blade:
  • Width x Length – 2.625" x 347"


• Band Drive:
  • Motor HP - 15 HP
  • Band Speed - 52-275 fpm
  • Band Tension - Hydraulic


• Hydraulic System:
  • Motor HP - 3 HP
  • Reservoir Size - 34 Gallon


• Coolant System:
  • Flood coolant
  • Motor HP - 1/4 HP
  • Reservoir Size 63 Gallon


• Indexer:
  • Length per Stroke - 15.75"
  • Maximum Index Strokes Length - 236"
  • Remnant Length - 9" (non bundle)


• Floor Space Dimensions:
  • W x L X H - 172" x 94" x 108"
  • Material Pass Height - 36"
  • Machine Weight - 25,350 lbs.


• Electrical:
  • Voltage Requirement - 230V-60Hz-3ph, Wye configuration
  • Total Amp Draw (FLA) - 61 Amps
