Hercules™

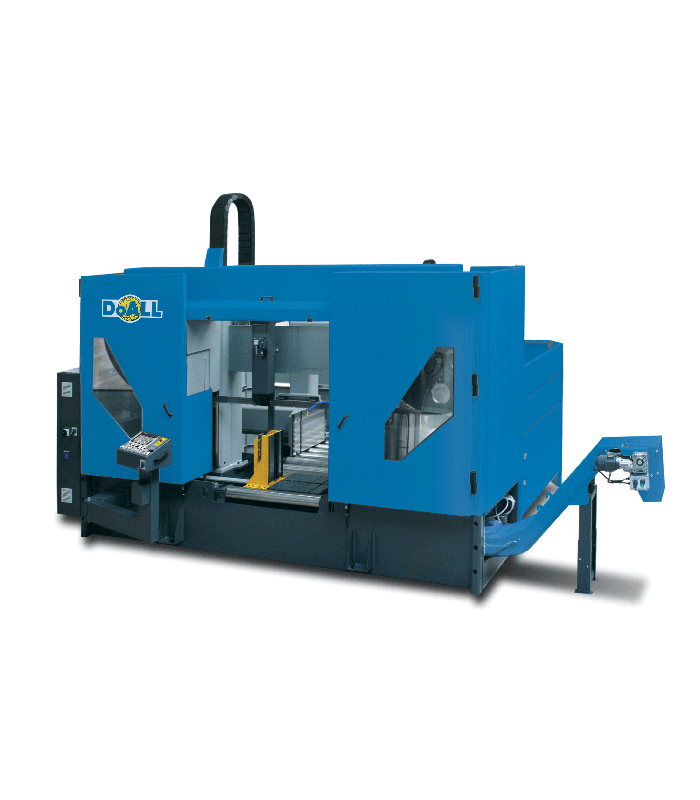

DC-1000CNC - Dual Column Enclosed CNC Band Saw

Machine Capacity: 33.5 x 40″ (850 x 1000mm) | Round (Tube or Solid): 33.5″ (850mm)
Production Level: Extreme

The DC-1000CNC Hercules high production, horizontal CNC band saws from DoALL are highly efficient, automatic, hydraulically controlled machines with multiple material feeds. Designed for vertical cuts, the DC-1000CNC is ideal for serial production in industrial settings. Thanks to the robust construction of the DC-1000CNC, it is possible to cut a wide range of full and profile materials including stainless and tool steel. In addition, the "box" or enclosed design provides very safe operation. A large variety of optional accessories are available to customize the machine for specific sawing requirements.

SHOP DOALL ONLINE
SKU DC-1000CNC
Share:

Standard Equipment:

  • Siemens saw control with touch screen display
  • Work light
  • Hydraulic band tension
  • Work height sensor
  • Automatic guide arm setting
  • Automatic feed control with programmable feed rates
  • Variable vise pressure control - Set of 2
  • Power-driven band brush
  • Chain chip conveyor with large pan
  • Automatic retraction of material in cycle for protection of carbide blades
  • Dual acting index vice jaws for crooked stock
  • Retractable stationary machine vice jaw
  • Tool kit
  • Complimentary DoALL cutting fluids package
  • One DoALL bi-metal saw blade
  • Instruction and parts manuals on CD or USB data stick
  • Cutting Capacity Round (Tube or Solid): 33.45″ (850mm)
  • Cutting Capacity Rectangle: 33.45 x 39.37″ (1000x850mm)
  • Maximum Bundle Capacity: 39.37 x 24″ (1000x610mm)
  • Band Saw Blade Width: 2.64 x 0.063″ (67x1.6mm)
  • Maximum Blade Length: 373.6″ (9490mm)
  • Band Speed: 50-262 fpm (15-80mpm)
  • Band Drive:15 hp (11.1kW)
  • Hydraulic Pump: 5.4 hp (4kW)
  • Coolant Pump: 0.2 hp (0.155kW)
  • Material Pass Line Height: 24.4″ (620mm)
  • Machine Weight: 30204 lbs (13700kg)
  • Dimensions W x L x H: 237 x 152 x 111" (6000x3850x2820mm)
  • Index Single Stroke Min-Max: 0.12-39.4″ (3-1000mm)
  • Auto Index Multiple Stroke Max: 394″ (9999mm)

Optional Accessories:

  • Front and rear vise nesting - Set of 2
  • Laser edge finder - eliminates trim cut
  • Dynamic adjustment of feed rate to ensure cut squareness
  • Mist-style saw band lubrication
  • Large chip pan with drain
  • Laser line generator
  • Input or output roller conveyor with drip pan - 11023lbs/3.28' (5000kg/m), 39.3x39.3″ or 39.3x78.7″ (1000x1000 or 1000x2000mm)
  • Single fixed or movable side vertical guide roller - 31.5″ (800mm)
  • Hydraulic shift of vertical guide roller
  • Additional conveyor rollers
  • Filler plates - 78.7″ (2000mm)
  • Heavy-duty input or output roller table - 15432lbs/3.28' (7000kg/m), 39.3x78.7″ (1000x2000mm)
  • Wear parts service kit

Please note that some accessories require extra lead time due to factory installation.
