Continental Series™

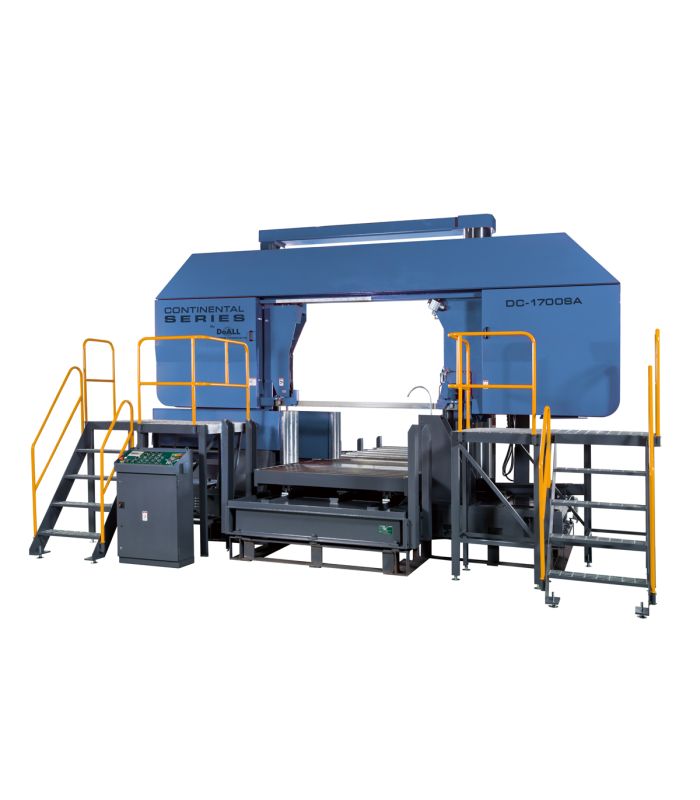

DC-1700SA Dual Column Semi-Automatic Band Saw
Machine Capacity: 51-1/4 x 67″ (1300x1700mm) | Round: 51-1/4" (1300mm)
Production Level: High
The DC-1700SA Dual Column, Semi-Automatic Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL dual column, semi-automatic saws is the perfect choice.
SKU
DC-1700SA
Standard Equipment:
- Programmable Logic Controller (PLC) control for all electric and hydraulic functions
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- One 6.5 foot (2 meter) gravity conveyor
- Tool kit
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CD or USB data stick
- Cutting Capacity Round: 51.2″ (1100mm)
- Cutting Capacity Rectangle: 67″ x 51.2″ (1700x1300mm)
- Band Saw Blade (L x W x Gage): 512 x 3-3/20 x 0.063" (13000x80x1.6mm)
- Band Speed: 39-246 FPM (12 – 75 m/min)
- Band Drive: 20 hp (15 kw)
- Hydraulic Pump: 5 hp (3.7kW)
- Hydraulic Tank Capacity: 43.6 gal (165 L)
- Coolant Pump: ¼ hp (0.2 kw)
- Coolant Tank Capacity: 74 gal (280 L)
- Material Pass Line Height: 26.8" (680 mm)
- Machine Weight: 46297 lbs (21000 kg)
- Dimensions W x L x H: 244 x 110.2 x 149.6″ (6200 x 2800 x 3800 mm)
